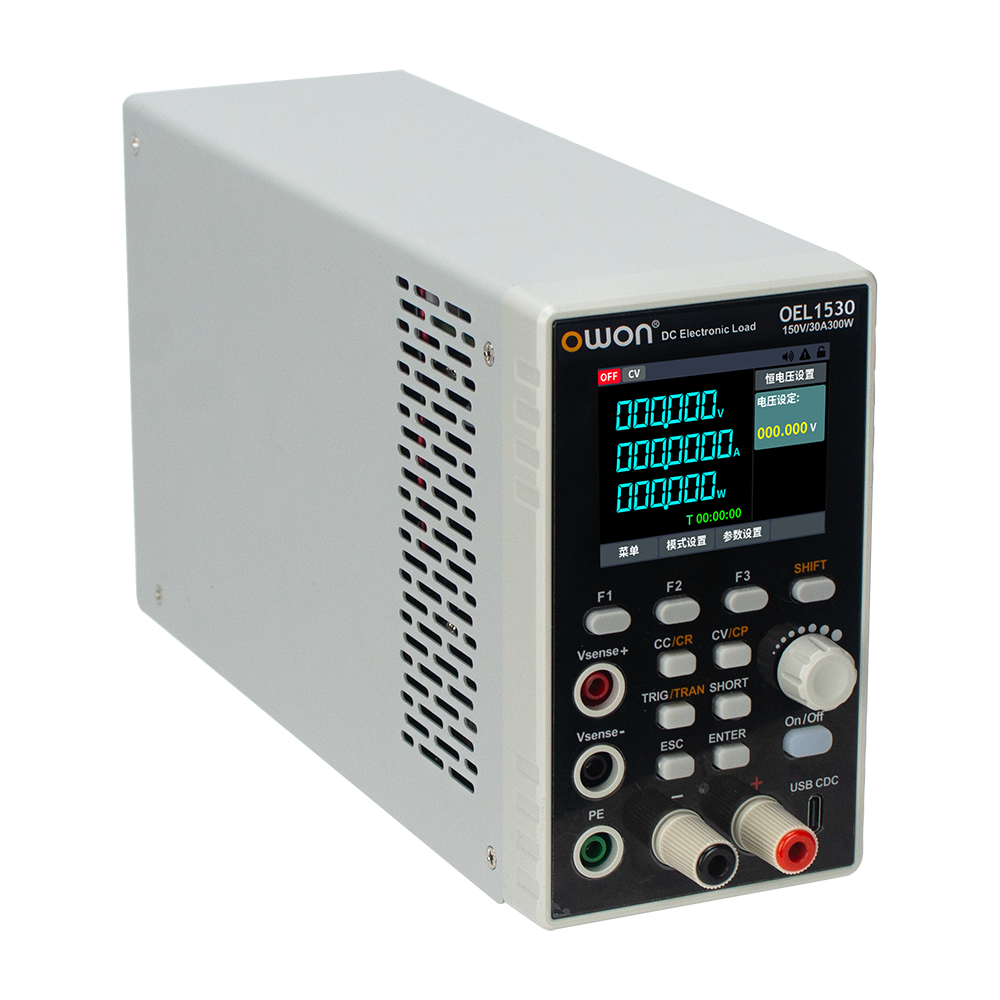

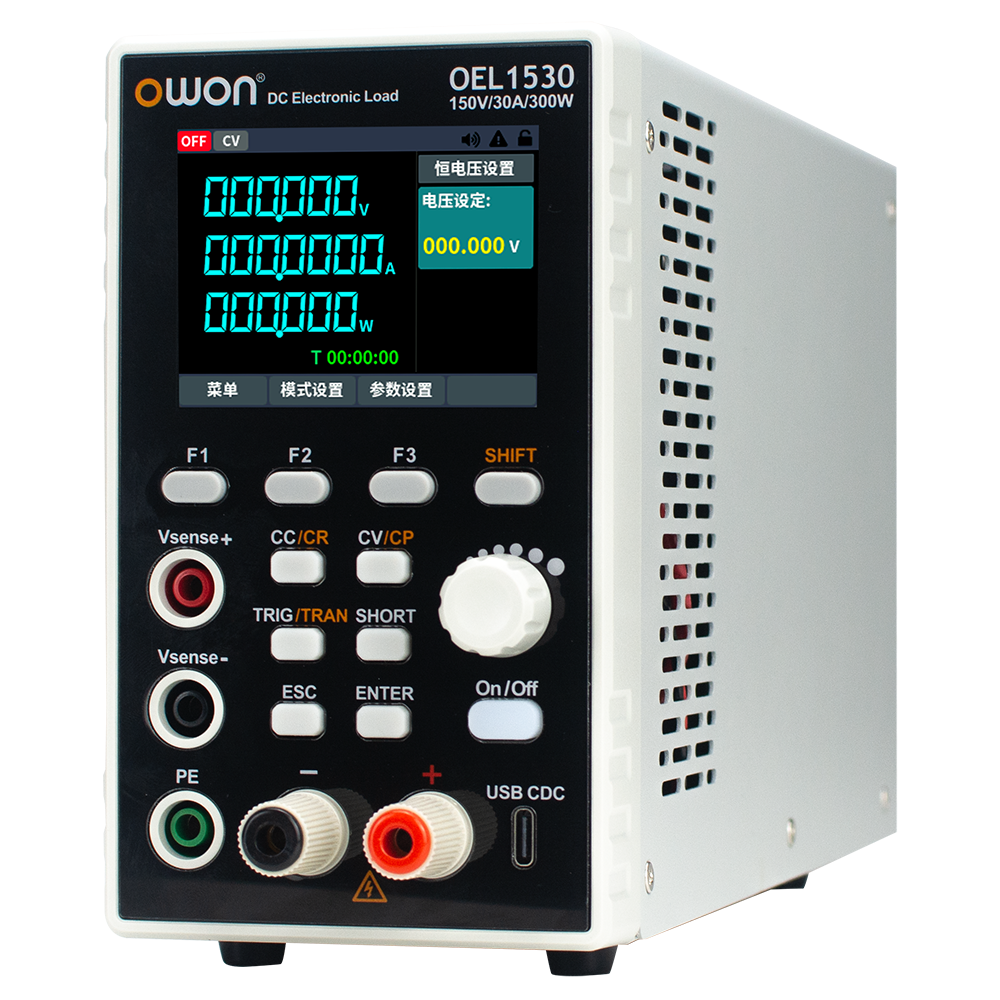

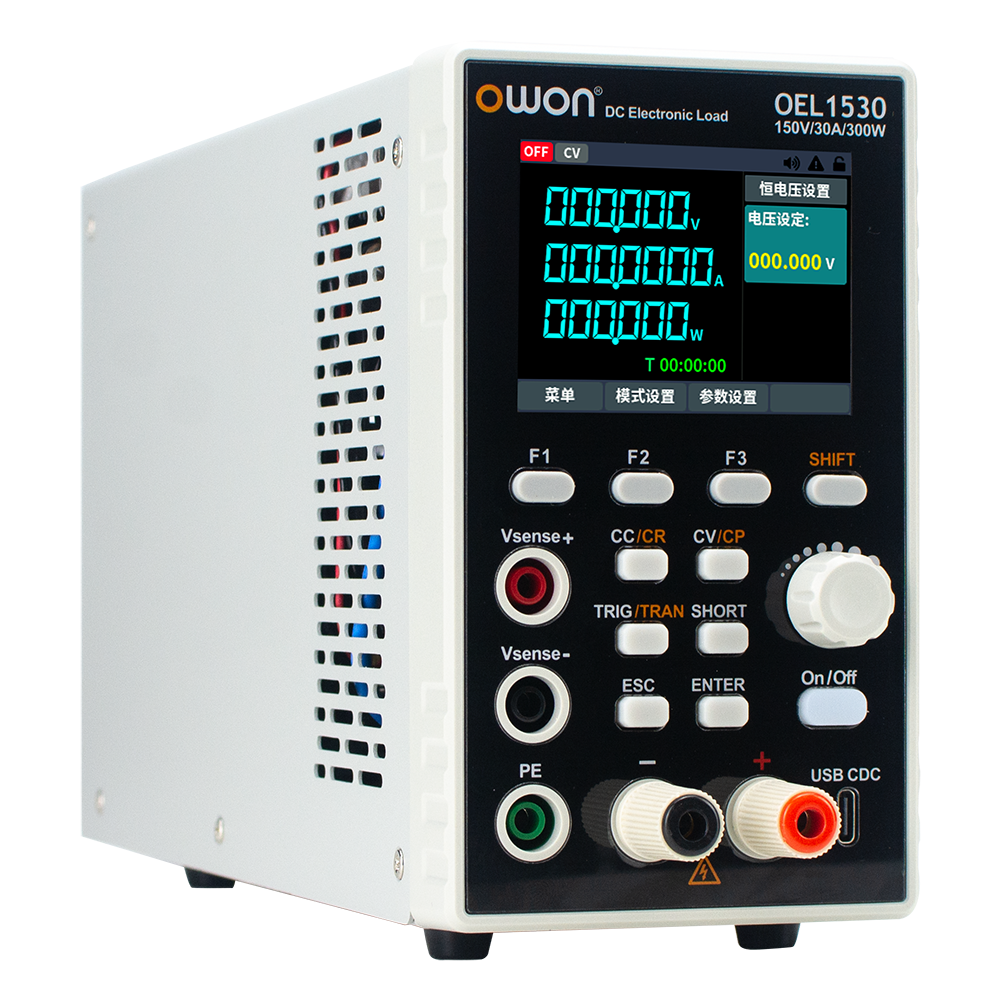

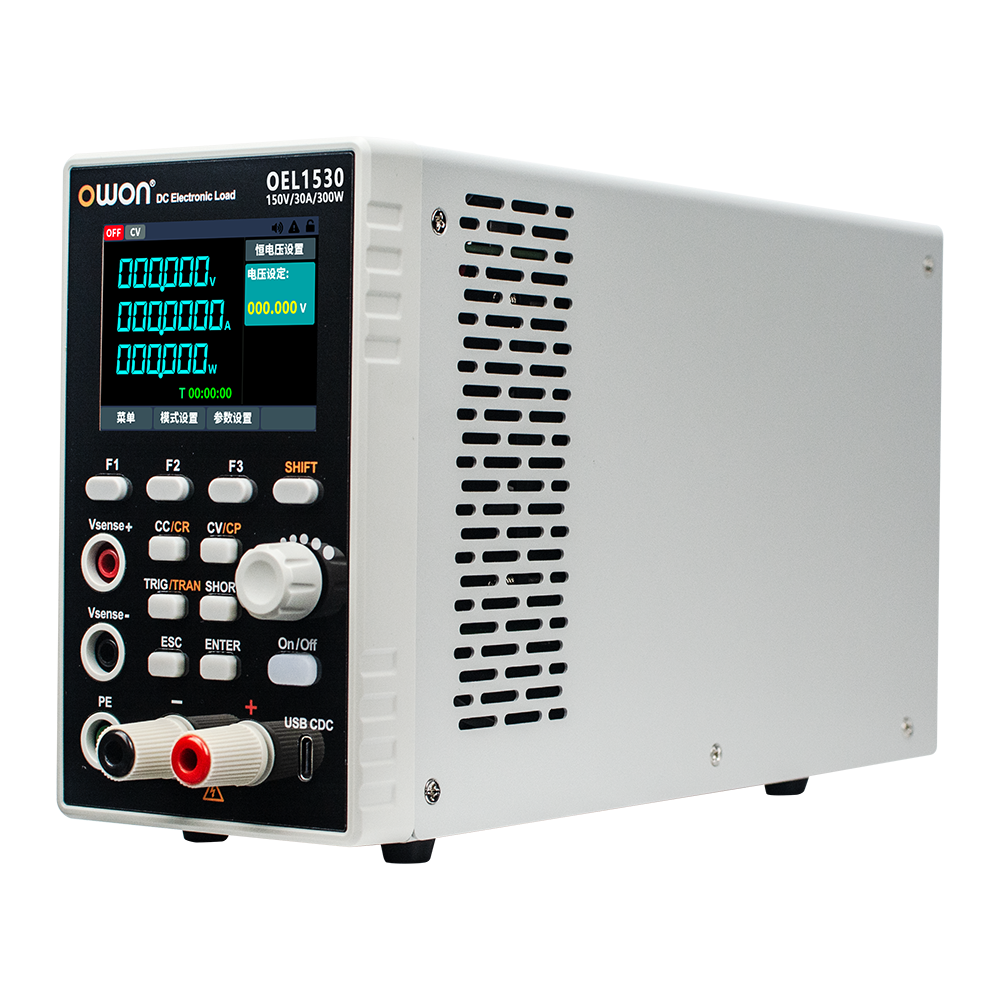

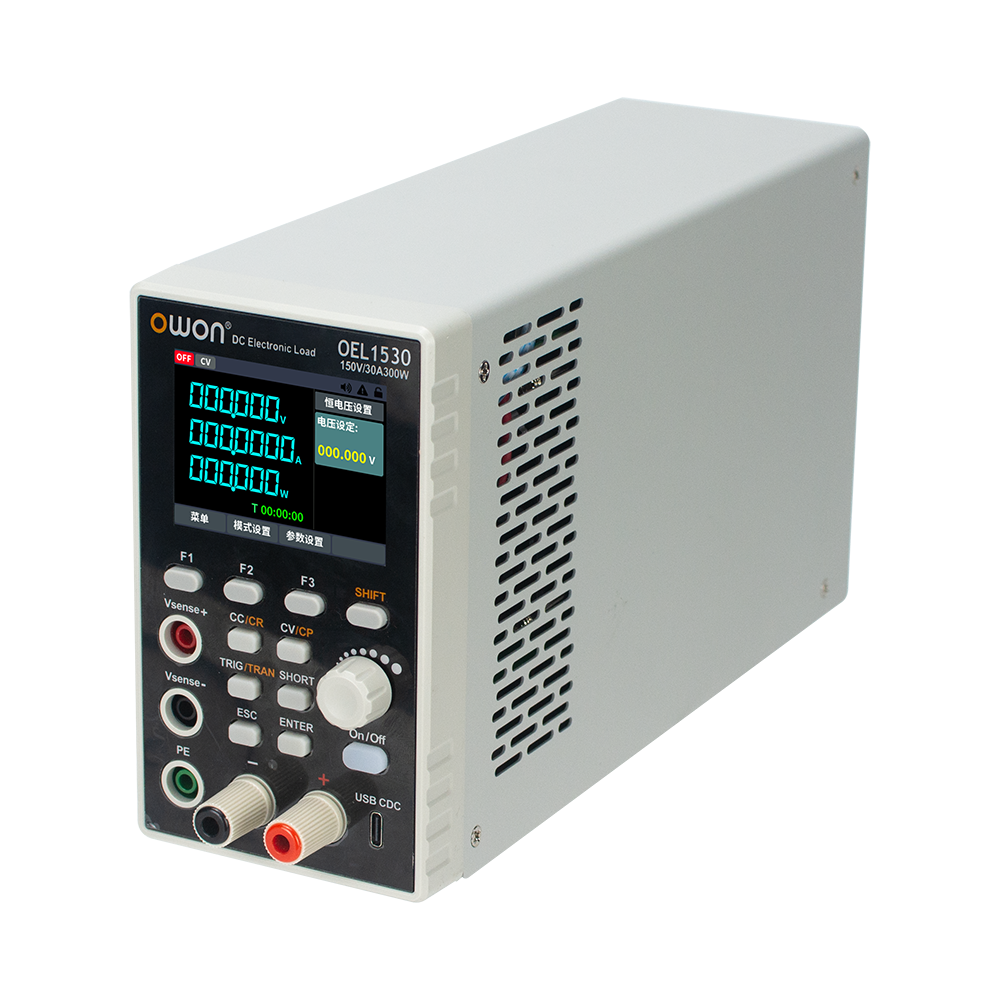

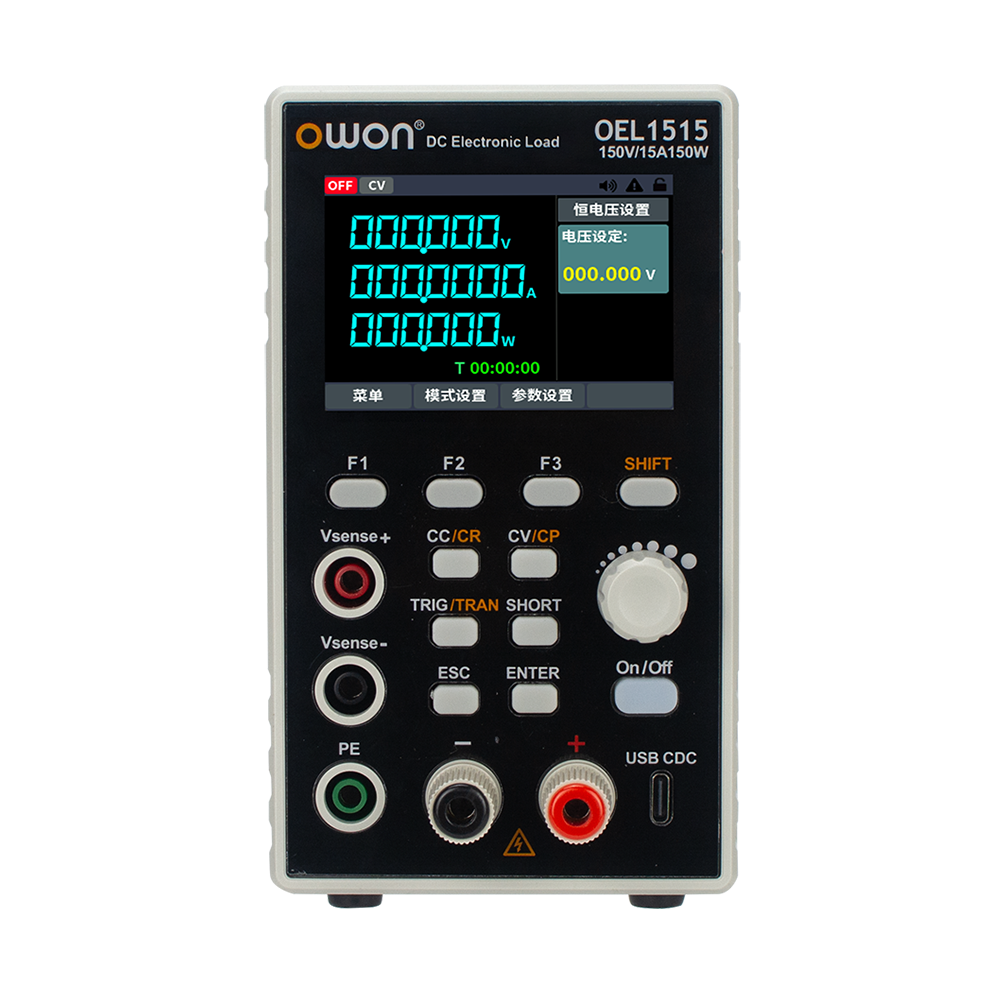

OEL15/30 Series DC Electronics Load
+ 2.8-inch TFT color LCD display

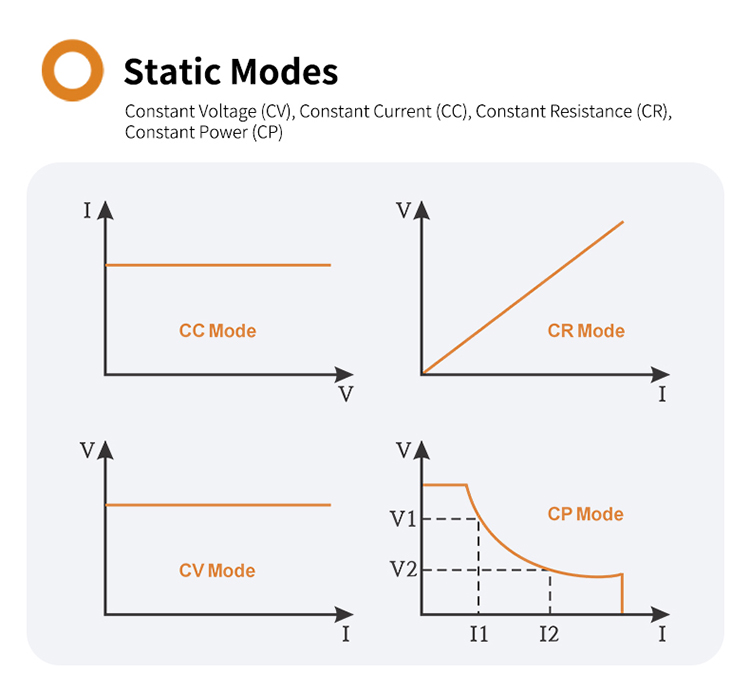

+ Four operation modes: CV, CC, CR, CP

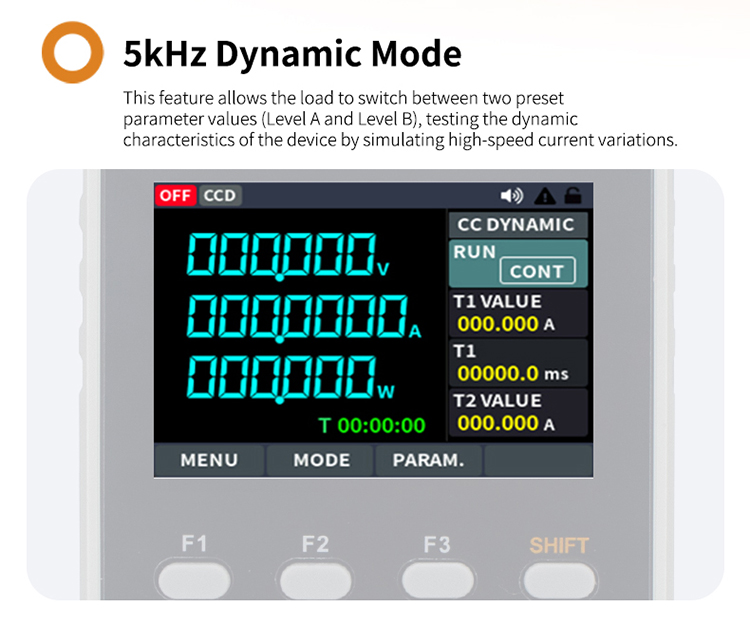

+ Supports dynamic current testing up to 5kHz
+ High resolution readback: 1mV/0.1mA

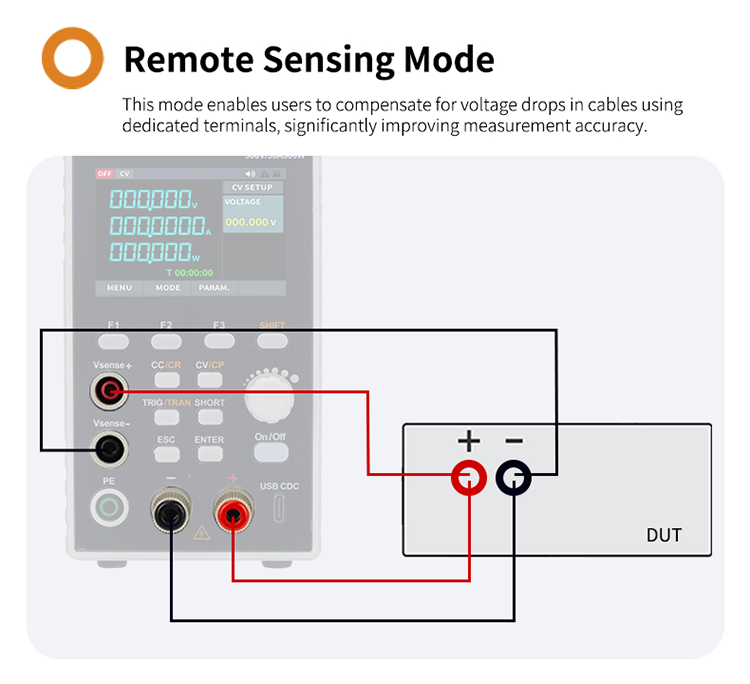

+ Supports remote sensing compensation

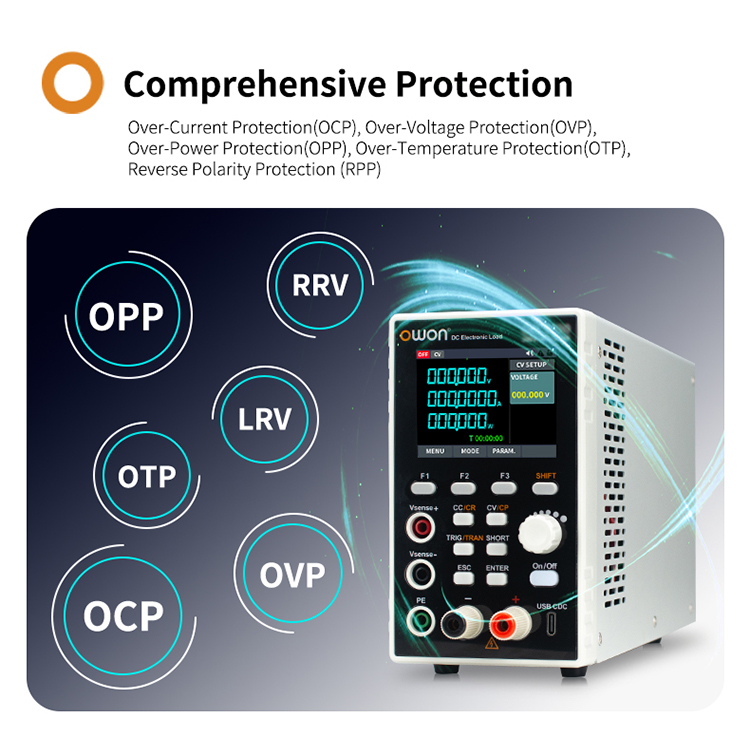

+ Multiple protections including OVP/OCP/OPP/OTP
+ Standard interfaces: RS232 and RS485 with SCPI protocol support

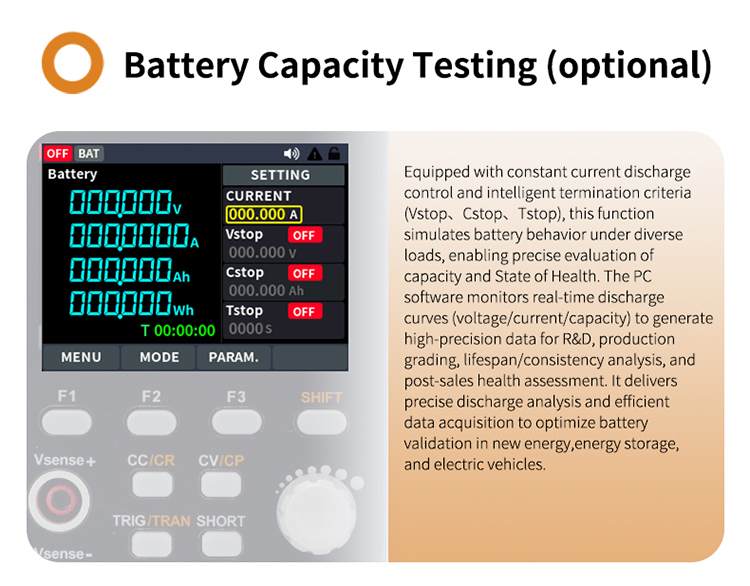

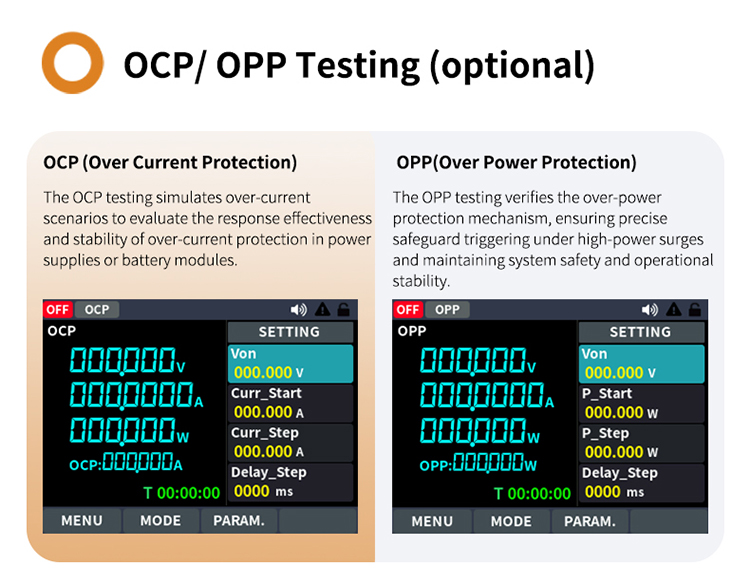

+ Optional test functions:Battery Discharge Test, OCP Test, OPP Test (Order No.OEL-T1)
PDF Export
E-mail Us
|
Model |
OEL1515 |
OEL1520 |
OEL1530 |
OEL3015 |
OEL3020 |
OEL3030 |
|
|
Rated Output |
Voltage |
0-150V |
0-300V |
||||
|
Current |
0-15A |
0-20A |
0-30A |
0-15A |
0-20A |
0-30A |
|
|
Power |
150W |
300W |
150W |
300W |
|||
|
Min. Operate Voltage |
0.8V@15A |
0.9V@20A |
1.1V@30A |
0.8V@15A |
0.9V@20A |
1.1V@30A |
|
|
CV Mode |
|||||||
|
Range |
0-150V |
0-300V |
|||||
|
Resolution |
1mV |
1mV |
|||||
|
Accuracy |
0.05%+0.05%FS |
0.05%+0.05%FS |
|||||
|
CC Mode |
|||||||
|
Range |
0-15A |
0-20A |
0-30A |
0-15A |
0-20A |
0-30A |
|
|
Resolution |
1mA |
1mA |
|||||
|
Accuracy |
0.03%+0.03%IFS |
0.03%+0.03%IFS |
|||||
|
CR Mode |
|||||||
|
Range |
0.05Ω - 7.5kΩ |
0.05Ω - 7.5kΩ |
|||||
|
Accuracy *1 |
0.1%+0.01%R |
0.1%+0.01%R |
|||||
|
CP Mode |
|||||||
|
Range |
150W |
300W |
150W |
300W |
|||
|
Resolution |
10mW |
10mW |
|||||
|
Accuracy*1 |
0.1%+0.1%FS |
0.1%+0.1%FS |
|||||
|
Dynamic Mode |
|||||||
|
T1&T2 |
0.1ms-50s |
0.1ms-50s |
|||||
|

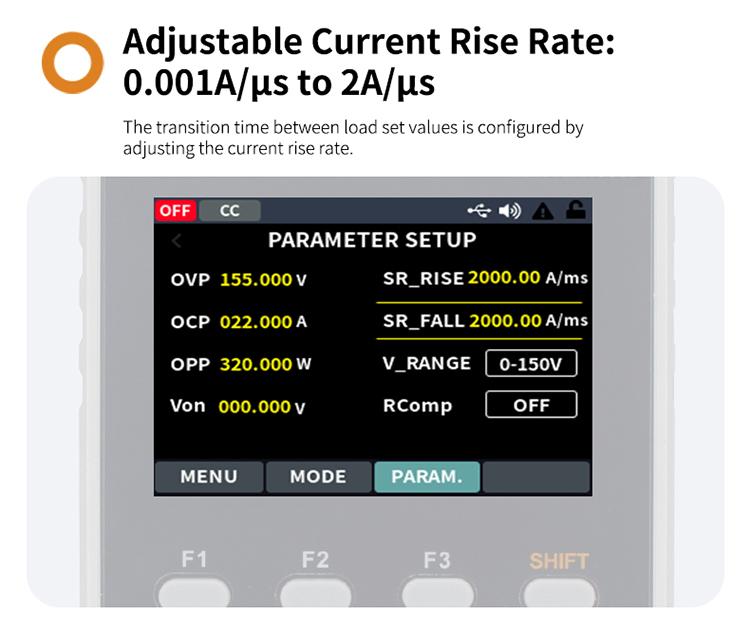

Rise/Fall Slope |
0.01A/ms-2000A/ms |
0.01A/ms-2000A/ms |
|||||
|
Min. Rise Time |
20μs |
20μs |
|||||
|
Voltage Readback |
|||||||
|
Range (V) |
0-15V / 0-150V |
0-30V / 0-300V |
|||||
|
Resolution |
1mV |
1mV |
|||||
|
Accuracy |
0.03%+0.05%FS |
0.03%+0.05%FS |
|||||
|
Current Readback |
|||||||
|
Range |
0-15A |
0-20A |
0-30A |
0-15A |
0-20A |
0-30A |
|
|
Resolution |
0.1mA |
0.1mA |
|||||
|
Accuracy |
0.03%+0.03%FS |
0.03%+0.03%FS |
|||||
|
Power Readback |
|||||||
|
Range |
150W |
300W |
150W |
300W |
|||
|
Resolution |
10mW |
10mW |
|||||
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS |
|||||
|
Protection |
|||||||
|
Overpower Protection |
>OPP, 10ms delay protect |
>OPP, 10ms delay protect |
|||||
|
Overvoltage Protection |
>OVP, 0.1ms delay protect |
>OVP, 0.1ms delay protect |
|||||
|
Overcurrent Protection |
>OCP, 0.1ms delay protect |
>OCP, 0.1ms delay protect |
|||||
|
Overtemperature |
85℃ |
85℃ |
|||||
|
Optional function |
Battery Discharge Test，OCP Test, OPP Test， (Oredr NO. OEL-T1) |
||||||
|
Input Power |
100V - 240Vac; 50Hz/60Hz |
||||||
|
Interface |

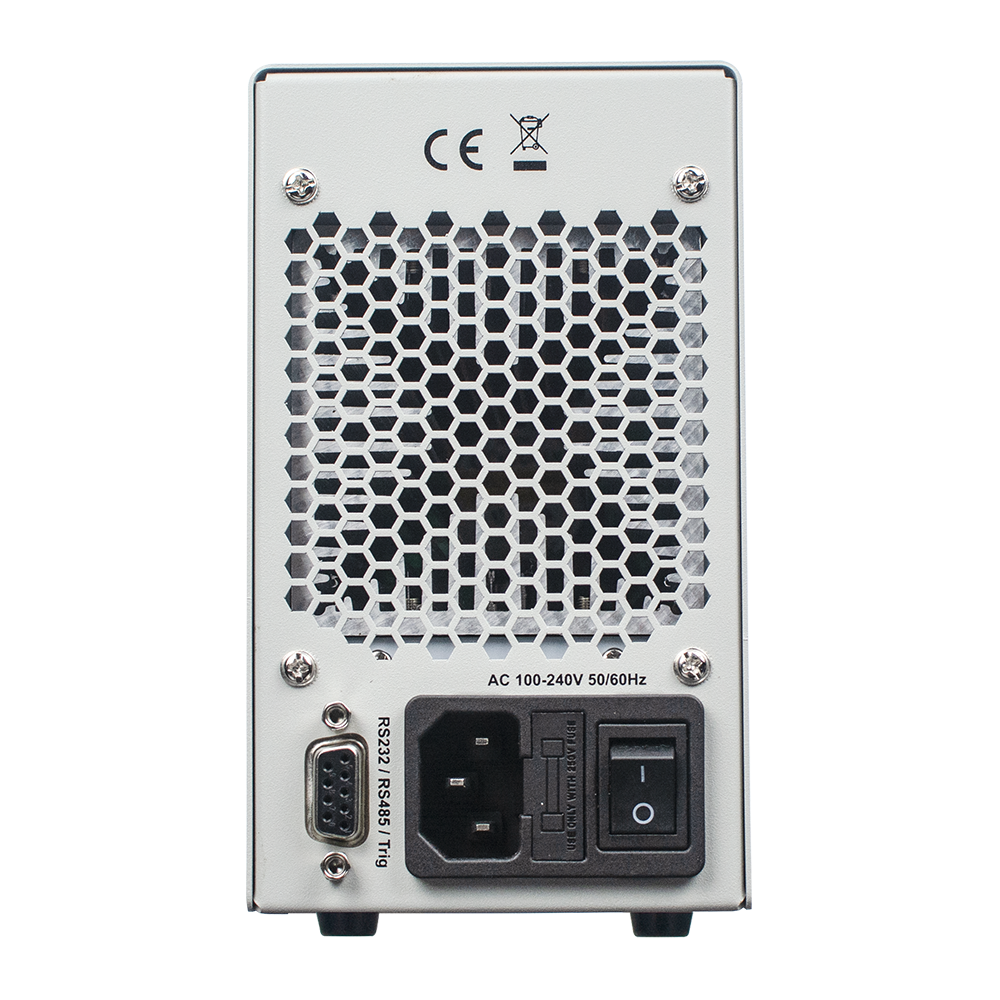

RS232,RS485，USB Device， SCPI support |
||||||
|

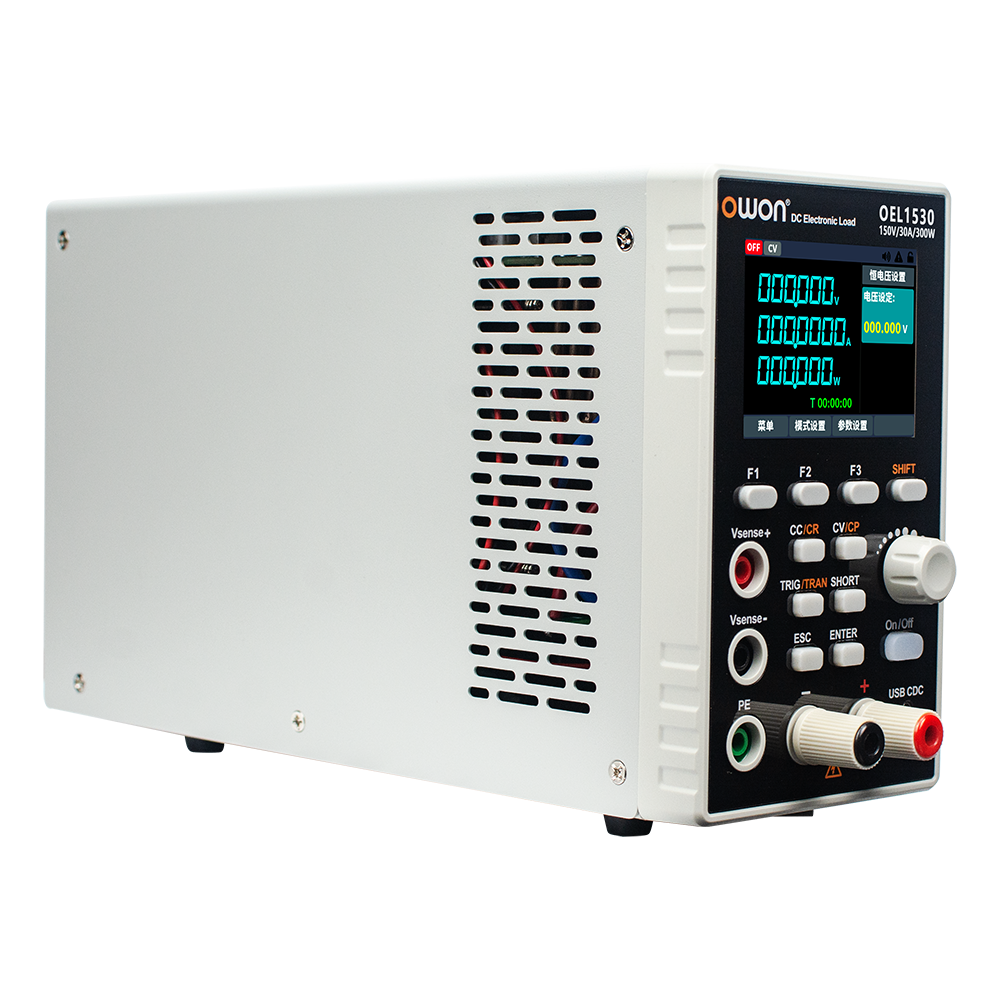

Heat Dissipation |
Internal intelligent fan with forced air cooling |
||||||
|
Withstand Voltage |
1.5KV / AC / 5mA |
||||||
|
Dimension ( W x H x D ) |
84mm*151mm*283mm |
||||||
|
Device Weight |
≈ 2.5kg |
||||||
